About this item
Description
Model

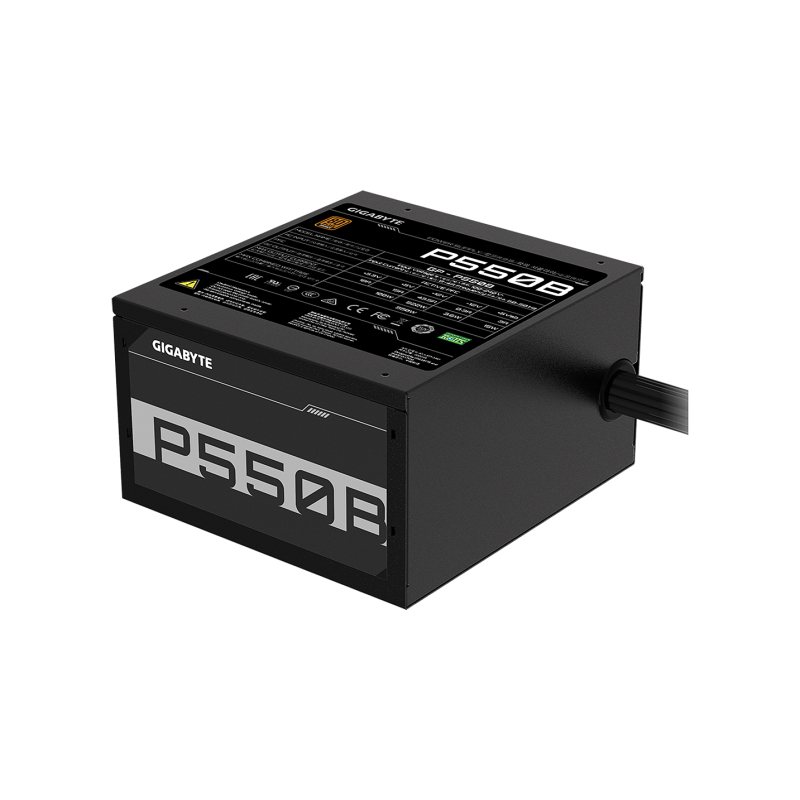

- P550B
Type
- Intel Form Factor ATX 12V v2.31
PFC
- Active PFC(>0.9 typical)
Input Voltage
- 100-240 Vac(full range)
Input Current
- 8-4 A
Input Frequency
- 60-50 Hz
Output Capacity
- 550W
Dimension
- 150 x 140 x 86 mm
Fan Type
- 120mm Hydraulic Bearing (HYB) Fan
80 PLUS
- Bronze
Efficiency
- 85% at typical load
MTBF
- >100,000 hours
Protection
- OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
- 100-500ms
Hold Up Time
- >16ms
Cable Type
- Flat, All black
Connectors
- ATX/MB 20+4 Pin x 1 : 550mm*1
- CPU/EPS 4+4 Pin x 1 : 600mm*1
- PCI-e 6+2 Pin x 2 : 550mm+150mm*1
- SATA x 6 : 500mm+120mm+120mm*2
- 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
Specifications
Brand
Gigabyte
