Description


• Native Resolution: 800 x 600
• Maximum Resolution: 1920 x 1200
• Standard Mode Brightness: 4800 lm
• Low Mode Brightness: 3600 lm
• Compatible Aspect Ratio: 16:9
• Native Aspect Ratio: 4:3
• Contrast Ratio: 20,000:1
• Throw Ratio: 1.94 to 2.16 (1295.40 mm@2000 mm)
• Digital Zoom: 2x
• Zoom Ratio: 1:1.1
• Vertical Keystone Correction: -40°/+40°
• Maximum Vertical Sync: 120 Hz
• Minimum Vertical Sync: 24 Hz
• Maximum Horizontal Sync: 100 kHz
• Minimum Horizontal Sync: 15 kHz
• Colour Supported: 1.07 Billion Colors (30-bit)
• Uniformity: 80%
• Graphic Mode: SVGA

Projection Lens

• Lens Type: Manual Zoom, Manual Focus
• Minimum Lens Aperture: f/2.41
• Maximum Lens Aperture: f/2.53
• Minimum Focal Length: 21.85 mm
• Maximum Focal Length: 24.01 mm
• Minimum Diagonal Image Size: 584.20 mm
• Maximum Diagonal Image Size: 7.62 m (300")
• Minimum Projection Distance: 1 m
• Maximum Projection Distance: 11.80 m
• Optical Zoom: 1.1x

Lamp

• Number of Lamps: 1
• Lamp Power: 220 W
• Normal Mode Lamp Life: 6000 Hour
• Economy Mode Lamp Life: 10000 Hour
• ExtremeEco Mode Lamp Life: 15000 Hour

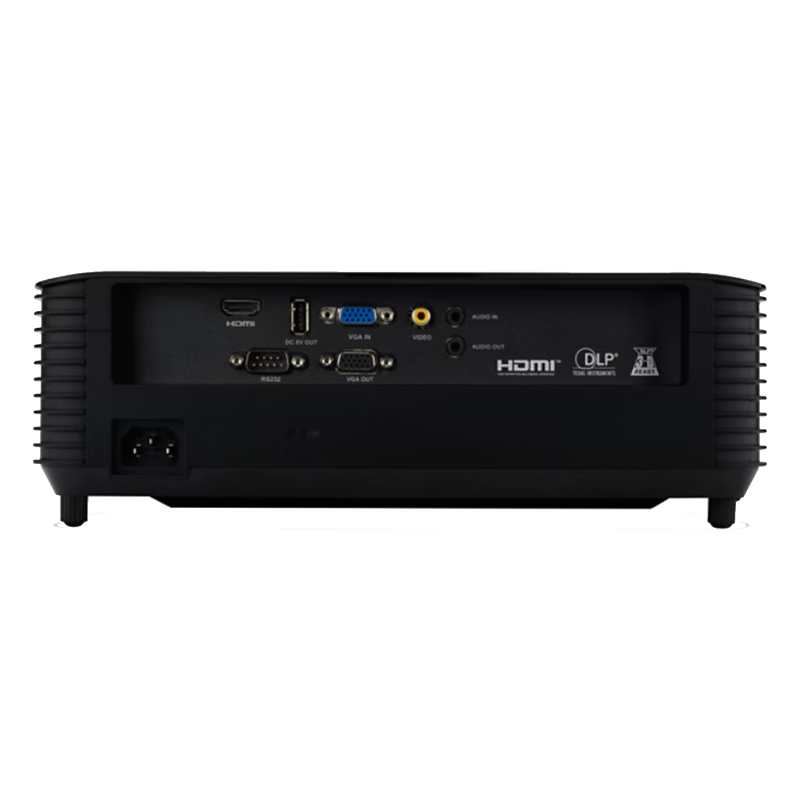

Interfaces/Ports

• Number of USB Ports: 1
• USB: Yes
• USB Connector Type: 1 x Type-A
• Number of Composite Video Ports: 1
• Composite Video: Yes
• Number of VGA Inputs: 1
• VGA In: Yes
• Number of VGA Outputs: 1
• VGA Out: Yes
• Number Of Audio Inputs: 1
• Number Of Audio Outputs: 1
• Audio Line In: Yes
• Audio Line Out: Yes

Technical Information

• Projection System: DLP
• Projection Method
• Front
• Rear
• Ceiling
• Rear Ceiling
• Video Compatibility
• NTSC
• PAL
• SECAM
• HDTV
• EDTV
• SDTV
• Computer Compatibility
• Windows PC
• Mac PC
• Offset: 130%

Audio

• Number of Speakers: 1
• Speaker Output Power: 3 W
• Speaker Output Mode: Mono

Power Description

• Power Supply: 100 V AC ~ 240 V AC
• Input Voltage
• 120 V AC
• 230 V AC
• Operating Power Consumption: 275 W
• Standby Power Consumption: 500 mW

Physical Characteristics

• Fan Noise
• 32 dB Approximate Standard Mode
• 24 dB Approximate Economy Mode
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 80%
• Weight (Approximate): 2.80 kg
• Form Factor: Ceiling Mountable
• Height: 113.7 mm
• Width: 313 mm
• Depth: 240 mm

Miscellaneous

• Optional Accessories
• Carrying Case (MC.JPV11.005)
• Lamp (MC.JR711.008)
• Standard Accessories
• AC Power Cord
• Battery for remote control
• Lens Cap
• Quick Start Guide
• Remote Control
• Security Card
• VGA Cable
