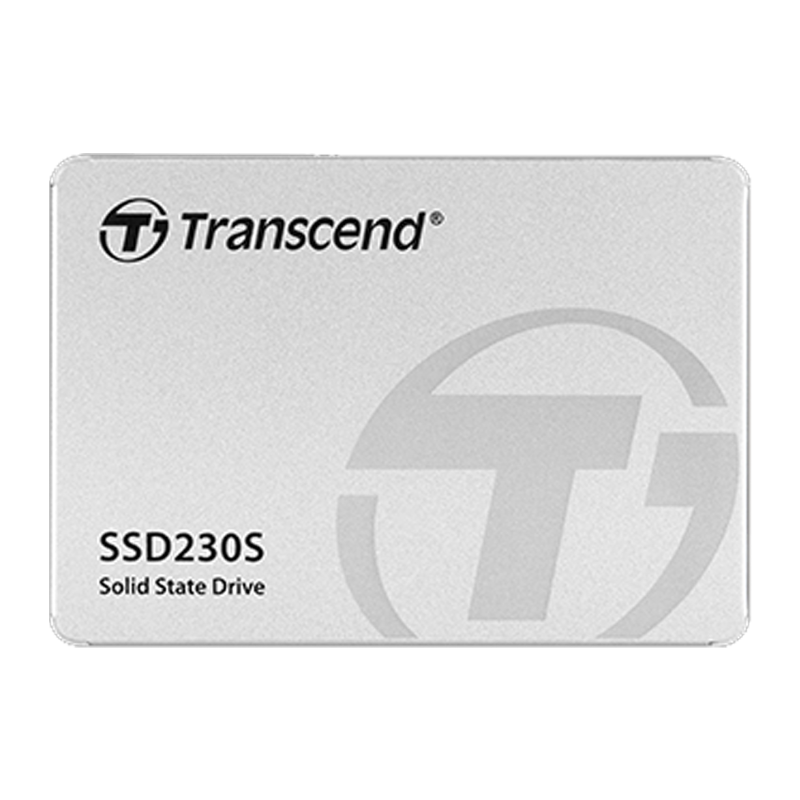

Transcend SSD230S 2.5" SATA

Description

Appearance

• Dimensions: 100 mm x 69.85 mm x 6.8 mm (3.94" x 2.75" x 0.28")
• Weight: 53 g (1.87 oz)

Storage

• Flash Type
• 3D NAND flash

Capacity

• 128 GB/256 GB/512 GB/1 TB/2 TB/4 TB

Operating Environment

• Operating Temperature: 0°C (32°F) ~ 70°C (158°F)
• Operating Voltage: 5V±5%

Performance

       Sequential Read/Write (CrystalDiskMark)

• 4 TBUp to 560/520 MB/s 2 TBUp to 560/520 MB/s 1 TBUp to 560/500 MB/s 512 GBUp to 560/500 MB/s 256 GBUp to 530/400 MB/s 128 GBUp to 560/380 MB/s

      4K Random Read/Write (IOmeter)

• 4 TBUp to 90,000/85,000 IOPS 2 TBUp to 85,000/89,000 IOPS 1 TBUp to 85,000/85,000 IOPS 512 GBUp to 65,000/85,000 IOPS 256 GBUp to 65,000/85,000 IOPS 128 GBUp to 35,000/70,000 IOPS

      Terabytes Written (TBW)

• 4 TB2,240 TBW 2 TB1,120 TBW 1 TB560 TBW 512 GB280 TBW 256 GB140 TBW 128 GB70 TBW
• Mean Time Between Failures (MTBF): 2,000,000 hour(s)
• Drive Writes Per Day (DWPD): 0.3 (5 yrs)

      Note

• Speed may vary due to host hardware, software, usage, and storage capacity.
• The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity.
• Terabytes Written (TBW) expresses the endurance under the highest capacity.
• For Mac users please visit our Apple Solutions here.

Warranty

• Certificate: CE/UKCA/FCC/BSMI/KC/RCM
• Warranty: Five-year Limited Warranty

       Warranty Policy

• Please click here for more information about the Transcend Warranty Policy.
• Warranty does not apply when SSD Scope's lifetime indicator displays 0% within the warranty coverage.

Package

• Package Contents: Full unit

System Requirement

       Operating System

• Microsoft Windows 7 or later
• Linux Kernel 2.6.31 or later

Technology

• TRIM & NCQ Command
• S.M.A.R.T.
• DDR3 DRAM Cache
• Advanced Garbage Collection
• DevSleep Mode
• RAID Engine
• LDPC Coding
