Description

CPU

• AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
• (Please refer "CPU Support List" for more information.)

Chipset

• AMD A620

Memory

• Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
• (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Onboard Graphics

• Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• * Support for DisplayPort 1.4 version.
• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3.
• ** Support native HDMI 2.1 TMDS compatible ports.
• (Graphics specifications may vary depending on CPU support.)

Audio

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

       CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
• * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

       Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

       CPU:

• 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

      Chipset:

• 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

       CPU:

• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 port on the back panel

      Chipset:

• 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
• 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
• 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x addressable LED strip header
• 1 x RGB LED strip header
• 1 x M.2 Socket 3 connector
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 1 header
• 1 x USB 2.0/1.1 header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x Clear CMOS jumper

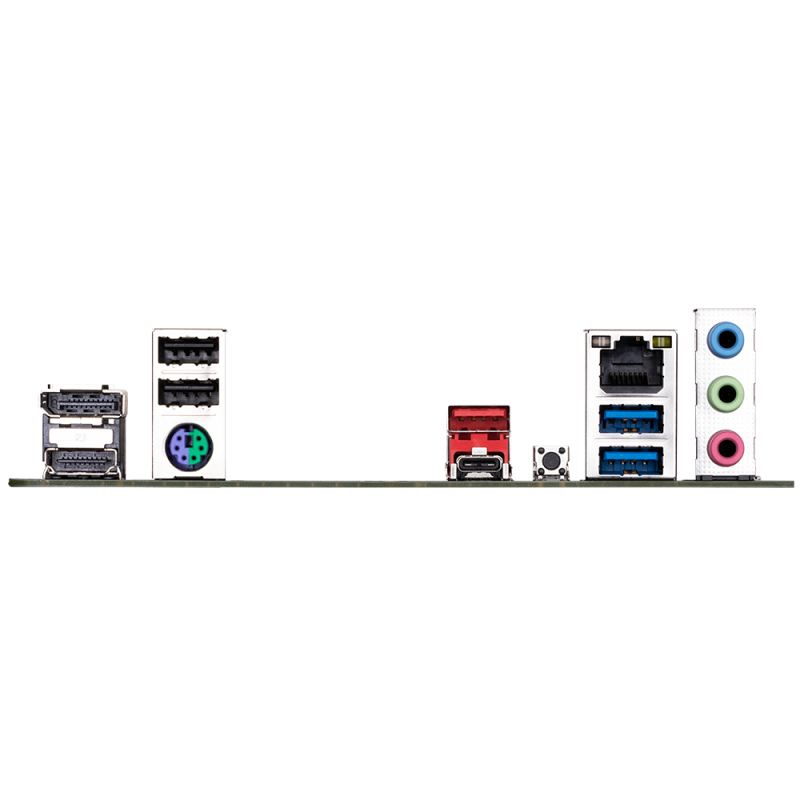

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x USB Type-C® port, with USB 3.2 Gen 1 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 2 x USB 3.2 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x HDMI port
• 1 x DisplayPort
• 1 x Q-Flash Plus button
• 1 x RJ-45 port
• 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control
• * Whether the fan speed control function is supported will depend on the fan you install.

BIOS

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for GIGABYTE Control Center (GCC)
• * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
• Support for Q-Flash
• Support for Q-Flash Plus

Bundled Software

• Norton® Internet Security (OEM version)
• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit
• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor; 24.4cm x 24.4cm
