Description

Case Dimensions and Physical Specs

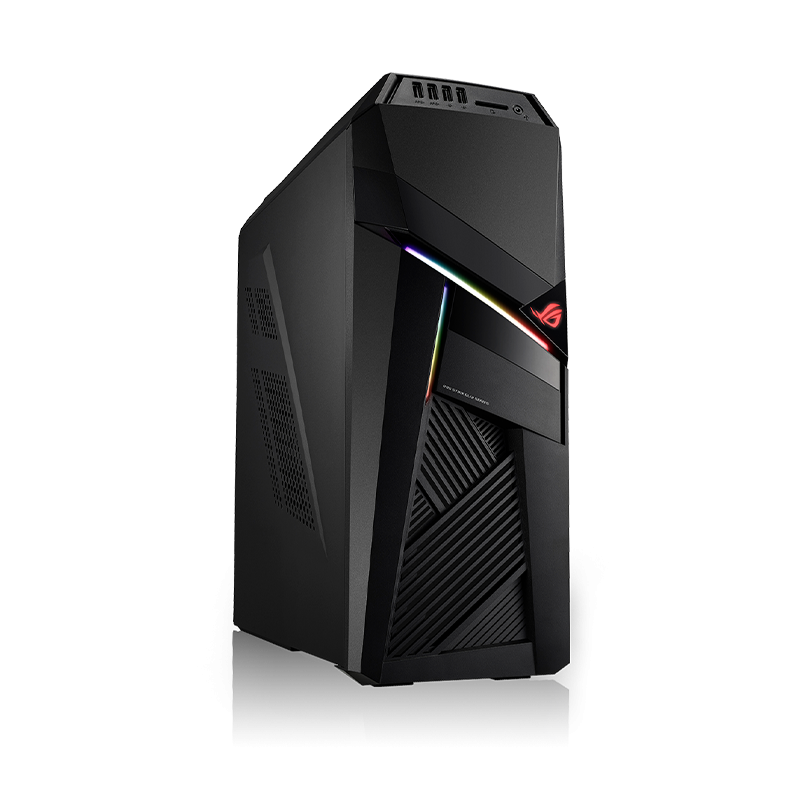

• Dimensions: Approximately 17.9 (W) x 40.0 (D) x 45.6 (H) cm (roughly 7 x 15.7 x 18 inches).
• Volume: 27 Liters.
• Weight: 11 kg (24.3 lbs).
• Color: Iron Gray.

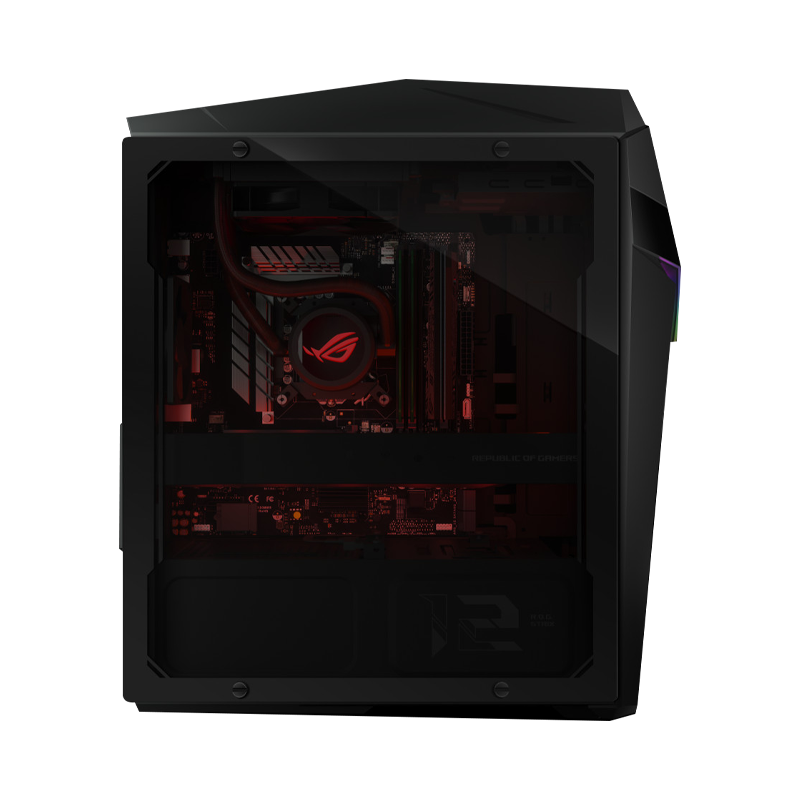

• Side Panel: Comes with a standard metal side panel, with an optional transparent acrylic panel included to showcase internal components.
• Front Panel: Features a removable magnetic cover to access the hot-swap bay.

Storage and Expansion Bays

• Hot-swap Bay: 1 x 2.5-inch hot-swap SSD tray on the front panel.
• Internal Drive Bays: 2 x 3.5-inch internal bays, 1 x 2.5-inch internal bay.
• Optical Drive: 1 x 9mm Slim Type DVD-RW.
• DIMM.2 Module: A specialized vertical module on the Z390 motherboard that holds up to two M.2 SSDs with dedicated heatsinks.

Cooling and Airflow

• Liquid Cooling: Uses a 120mm closed-loop liquid cooler for the CPU (often a modified Cooler Master MasterLiquid Pro).
• Fans: 1 x 120mm front intake fan, 1 x 90mm rear exhaust fan.
• Airflow Design: Utilizes two isolated air chambers to separate hot components (like the PSU) from the main, cooled compartment.

Front I/O Ports

• 2 x USB 3.1 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x Microphone in / Headphone out
• 1 x 2-in-1 card reader (SD/MMC)

Rear I/O Ports

• 2 x USB 3.1 Gen 2 Type-A
• 4 x USB 3.1 Gen 1 Type-A
• 2 x USB 2.0 Type-A
• 1 x RJ45 Gigabit Ethernet
• 5 x Audio jacks (7.1 channel support)
• 1 x Optical S/PDIF out

Motherboard and Power

• Form Factor: MicroATX (customized).
• Chipset: Intel Z390.
• Power Supply: 700W 80 PLUS Gold.
