₱1,999.00

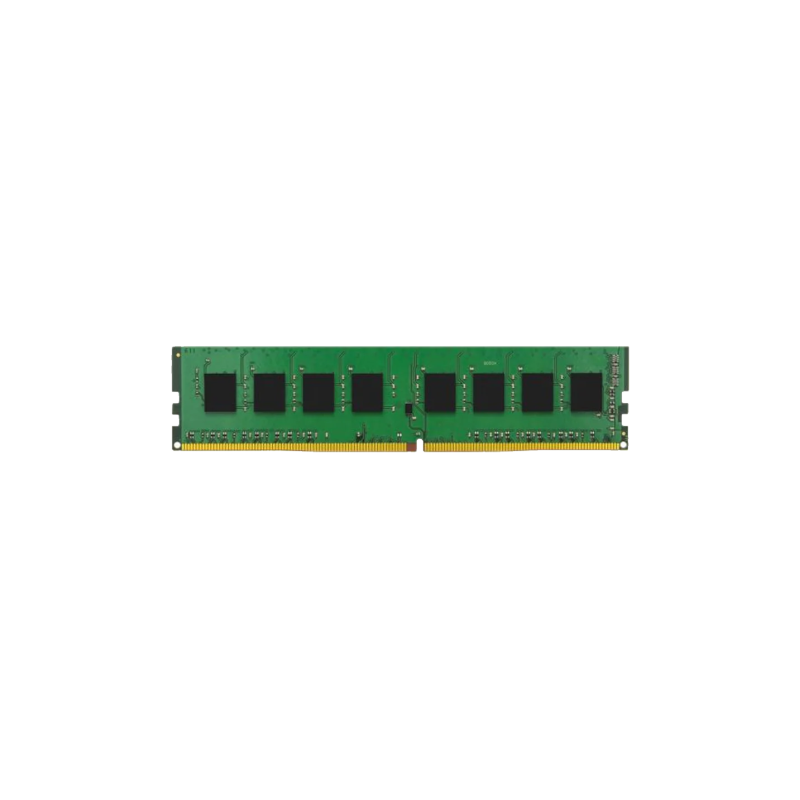

This document describes ValueRAM's KVR32N22S8/8 is a 1G x 64-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Brand:
Kingston
Security policy
Return policy
About this item
Specifications
Brand
Kingston
Dimensions
~133.35 mm × ~31.25 mm (module length × height)
Form Factor
288-pin UDIMM (Desktop)
Operating Temperature
0 °C – 85 °C
Additional Features
Unbuffered (no ECC) | JEDEC standard timings | Gold contact fingers
Storage Temperature
−55 °C – 100 °C
Memory Type
DDR4 SDRAM (Unbuffered, Non-ECC)
Capacity / Configuration
8 GB (1 × 8 GB)
Speed Frequency
Rated Speed: 3200 MT/s (DDR4-3200 / PC4-25600)
CAS Latency / Frequency
CL22 (22-22-22 at JEDEC standard)
Voltage
1.2 V (standard DDR4)
Module Configuration
1Rx8 (single rank)
Pins / Interface
288-pin DIMM
Compliance / Features
RoHS compliant, halogen-free
