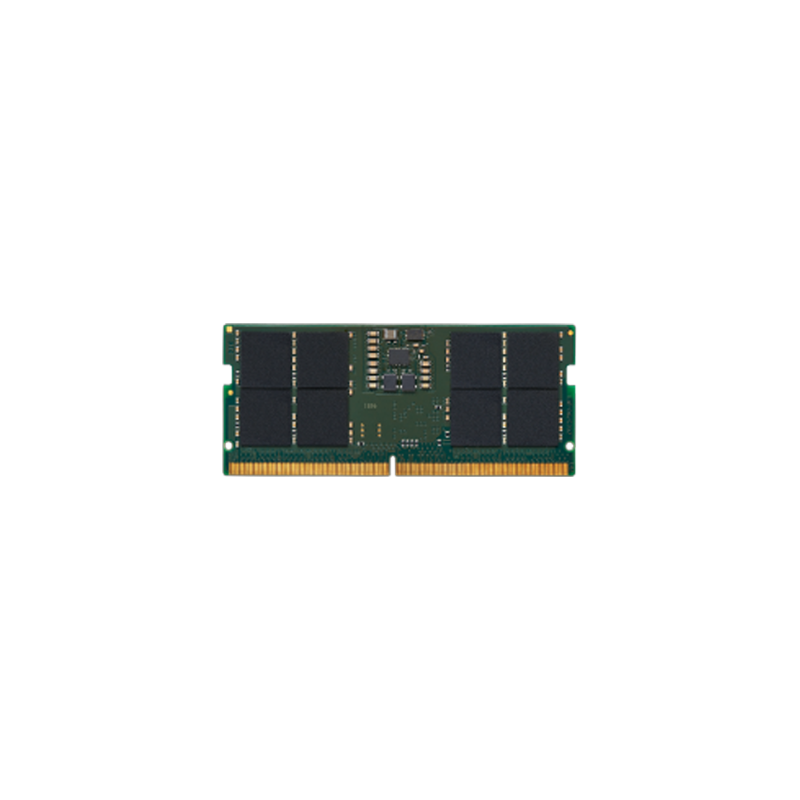

Kingston 16GB DDR5-5600 SODIMM KVR56S46BS8-16
  • Kingston 16GB DDR5-5600 SODIMM KVR56S46BS8-16

Kingston 16GB DDR5-5600 SODIMM KVR56S46BS8-16

₱3,500.00

This document describes ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.

Brand: Kingston
Quantity



Security policy



Return policy

About this item

Description

SPECIFICATIONS

  • CL(IDD): 46 cycles
  • Row Cycle Time (tRCmin): 48ns(min.)
  • Refresh to Active/Refresh Command Time (tRFCmin) : 295ns(min.)
  • Row Active Time (tRASmin) 32ns(min.)
  • UL Rating: 94 V - 0
  • Operating Temperature: 0o C to +85o C
  • Storage Temperature: -55o C to +100oc

FEATURES

  • Power Supply: VDD = 1.1V Typical
  • VDDQ = 1.1V Typical
  • VPP = 1.8V Typical
  • VDDSPD = 1.8V to 2.0V
  • On-Die ECC
  • PCB:  Height 1.18” (30.00mm)
  • RoHS Compliant and Halogen-Free

Specifications

Brand Kingston
