Description

Unique Feature

• Rock-Solid Durability
• 5 Power Phase
• EZ Update
• ASRock Auto Driver Installer

CPU

• Supports 10th Gen & 11th Gen Intel® Core™ Processors (LGA1200)
• Supports Intel® Turbo Boost Max 3.0 Technology

Memory

• Dual Channel DDR4 Memory Technology
• 2 x DDR4 DIMM Slots
• Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 64GB
• Supports Intel® Extreme Memory Profile (XMP) 2.0
• 15μ Gold Contact in DIMM Slots
• *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 3200 natively; Core™ (i3), Pentium® and Celeron® support DDR4 2666 natively.
• 10th Gen Intel® Core™ (i9/i7) support DDR4 2933 natively; Core™ (i5/i3), Pentium® and Celeron® support DDR4 2666 natively.

BIOS

• 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

• 1 x HDMI
• Intel® 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
• Intel® 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz
• 1 x DVI-D, supports HDCP 2.3 and max. resolution up to Full HD (1920x1200) 60Hz
• 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz
• *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Graphics specifications may vary between CPU types.

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

• Gigabit LAN 10/100/1000 Mb/s
• Realtek 8111H

Slots

• Intel® 11th Gen & 10th Gen Processors:
• 1 x PCIe 4.0 x16 Slot (PCIE1)*
• Intel® 11th Gen Processors support PCIe 4.0 x16
• Intel® 10th Gen Processors support PCIe 3.0 x16
• Intel® H470 Chipset:
• 1 x PCIe 3.0 x1 Slot (PCIE2)*
• *Supports NVMe SSD as boot disks

Storage

• Chipset:
• 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• 4 x SATA3 6.0 Gb/s Connectors
• *Supports Intel® Optane™ Technology
• Supports NVMe SSD as boot disks

RAID

• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB
• 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
• 6 x USB 2.0 (2 Rear, 4 Front)
• *All USB ports support ESD Protection

Connector

• 1 x COM Port Header
• 1 x SPI TPM Header
• 1 x Chassis Intrusion and Speaker Header
• 1 x CPU Fan Connector (4-pin)*
• 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• 1 x 24 pin ATX Power Connector
• 1 x 8 pin 12V Power Connector
• 1 x Front Panel Audio Connector
• 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
• 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
• *CPU_FAN1 supports the fan power up to 1A (12W).
• **CPU_FAN2/WP supports the fan power up to 2A (24W).
• ***CHA_FAN1~2/WP support the fan power up to 2A (24W).
• CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

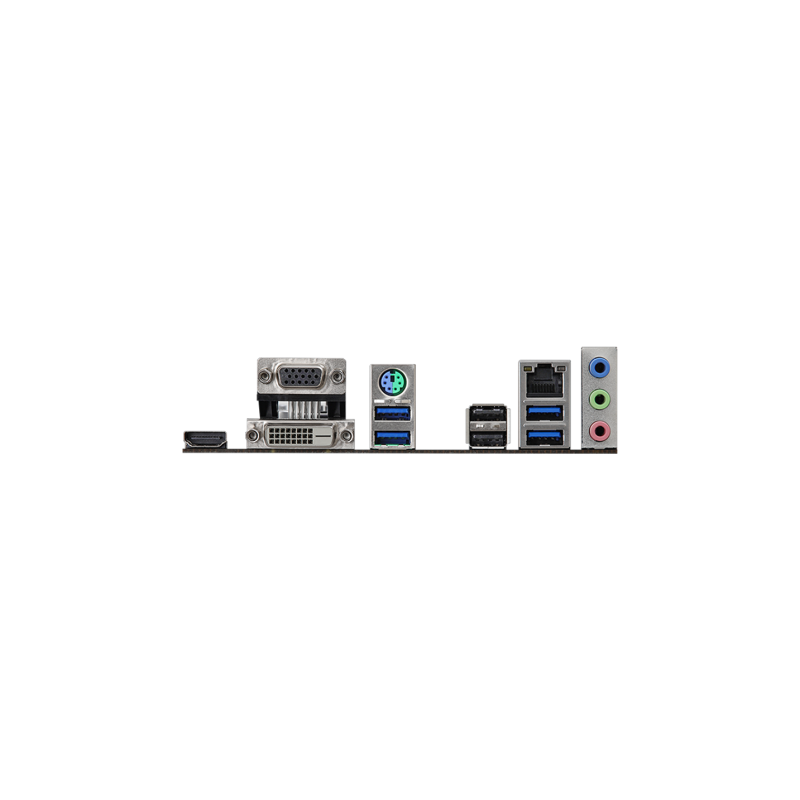

Rear Panel I/O

• 1 x PS/2 Mouse/Keyboard Port
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB 2.0 Ports
• 4 x USB 3.2 Gen1 Ports
• 1 x RJ-45 LAN Port
• HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

• Software
• ASRock Motherboard Utility (A-Tuning)
• UEFI
• ASRock EZ Mode
• ASRock Full HD UEFI
• ASRock My Favorites in UEFI
• ASRock Auto Driver Installer
• ASRock Instant Flash
• ASRock Internet Flash
• ASRock Easy RAID Installer
• *These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Form Factor

• Micro ATX Form Factor: 9.1-in x 7.8-in, 23.1 cm x 19.8 cm

OS

• Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

• FCC, CE
• ErP/EuP ready (ErP/EuP ready power supply is required)
