₱7,100.00

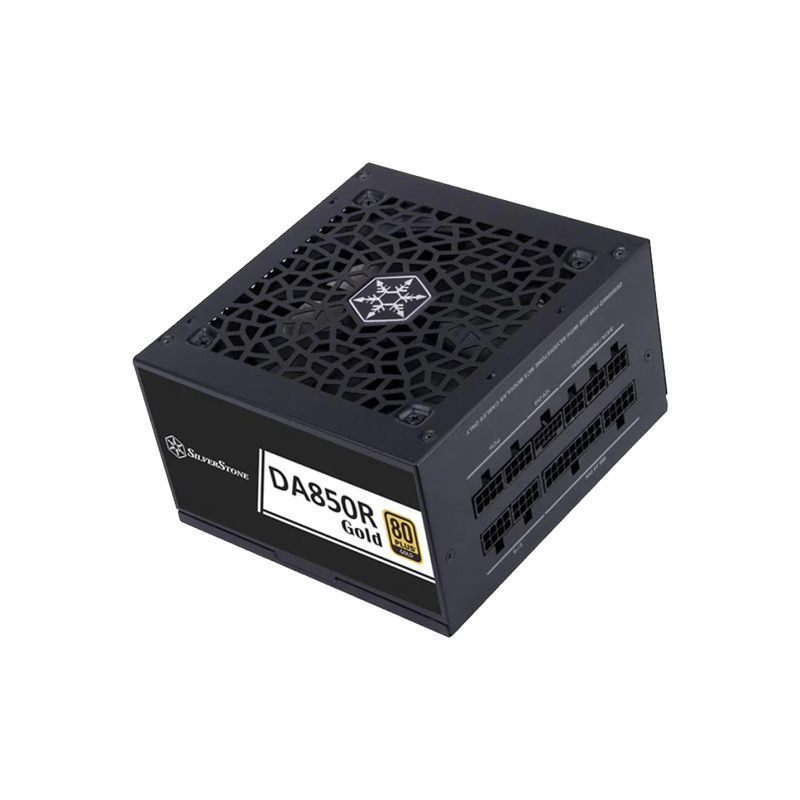

The SilverStone DA850R GMA Decathlon 850W PSU delivers exceptional power efficiency with its 80 PLUS Gold certification. Featuring modular cabling and flat cables for streamlined airflow, this power supply ensures a clean and organized build. Ideal for gamers and professionals, it combines reliability and performance seamlessly.
Brand:
SilverStone
Security policy
Delivery policy
Return policy
About this item
Description
Product No.
- SST-DA850R-GMA-WWW (White), SST-DA850R-GMA (Black)
Model (Safety Certification)
- SST-AX0850MCGD-D
Color
- White (lead-free paint), Black (lead-free paint)
Max. DC Output
- 850W
Power Density
- 471W/L
Load Range
- +3.3V: 20A, +5V: 20A, +12V: 70.8A, +5VSB: 3A, -12V: 0.3A
Range (%)
- +3.3V, +5V: ±3%, +12V: +5%-7%, +5VSB: ±5%, -12V: ±8%
Line Regulation (%)
- ±1% for all outputs
Ripple (mVp-p)
- +3.3V, +5V: 40mV, +12V, -12V: 80mV, +5VSB: 40mV
Combined +3.3V & +5V
- 100W
Combined +12V
- 850W
Input Voltage
- 90 ~ 264 Vrms
Input Frequency Range
- 47Hz ~ 63Hz
PFC
- Active PFC (PF > 0.9 at full load)
Efficiency
- ≥87% & <89%
MTBF
- 100,000 hours
Operating Temperature
- 0°C ~ 50°C
Protection
- Over Current, Over Power, Over Voltage, Short Circuit, Over Temperature, Under Voltage Protection
Connectors
- 1 x 24/20-Pin motherboard connector, 2 x 8/4-Pin EPS/ATX 12V connector, 4 x 8/6-Pin PCIe connectors, 1 x 12V-2x6 connector, 8 x SATA connectors, 4 x 4-Pin Peripheral connector
Cooling System

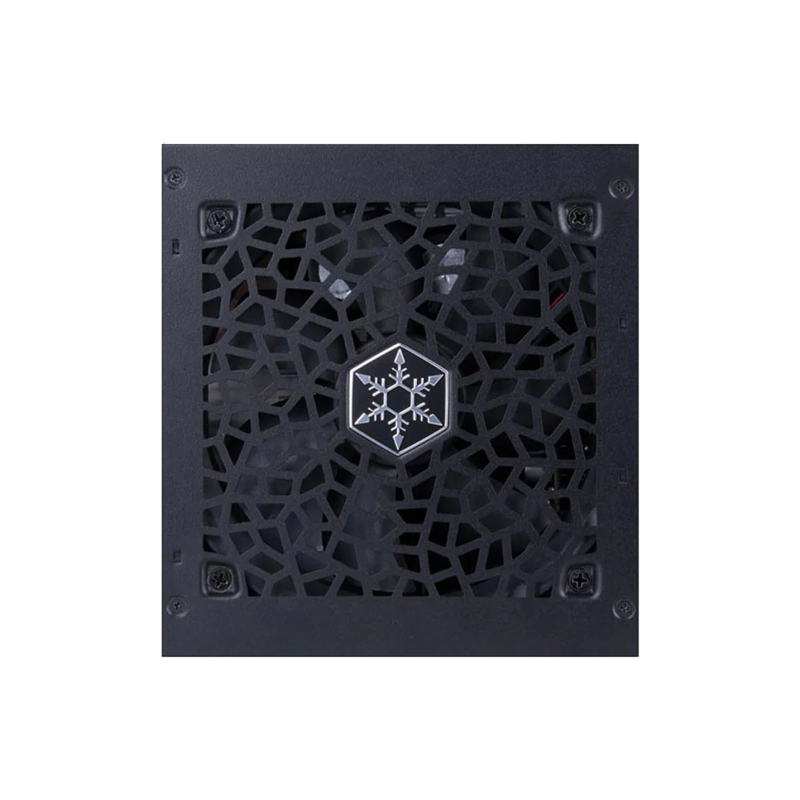

- Silent 120mm fan
Noise Level
- 0 dBA minimum
Certification
- 80 PLUS Gold
Form Factor
- ATX (PS2)
Dimension
- 150mm (W) x 86mm (H) x 140mm (D), 5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
- 2.13 kg
